PE100 HDPE suv ta'minoti trubkasi

Name: Xitoy maxsus PE100 HDPE suv ta'minoti quvurlari yetkazib beruvchilar, ishlab chiqaruvchilar - fabrika to'g'ridan-to'g'ri ulgurji - KANGYU
Brand: Shandong Kangyu Pipe Industry Co., Ltd
SKU: 171897776

PE100 HDPE water supply pipe (PE Pipe) are used for PE pipe for drinking water, sorted by strength classified according to the intensity of the earlier technological developments. high density polyethylene pipe pressure classes that can be made between Pn4-Pn32 and the production of the desired diameter and size of HDPE pipes system has undergone many tests in 1950, particularly in the carriage of drinking water. After the result of these tests of HDPE Pipes, if all reports are positive then it has no harmful effect on human life. One of today's most widely used pipe is HDPE pipes systems which is economical, easy in handling, efficient performance, easy method of coupling,and quite useful.HDPE pipe for potable water supply .

So'rov yuborish

Ta'rif

Mahsulot tafsilotlari

PE100	0.4MPa	0.5MPa	0.6MPa	0,8MPa	1.0MPa	1,25 MPa	1,6 MPa	2.0MPa	2,5 MPa
Tashqi diametri	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Devor qalinligi (uz)
20	-	-	-	-	-	-	2.0	2.3	3.0
25	-	-	-	-	-	2.0	2.3	3.0	3.5
32	-	-	-	-	2.0	2.4	3.0	3.6	4.4
40	-	-	-	2.0	2.4	3.0	3.7	4.5	5.5
50	-	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	42.9	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	49.0	61.2	76.2	94.1	117.6	-	-	-

KOMPANIYA PROFILI:

Shandong Kangyu Pipe Industry Co., Ltd., 2000 yilda tashkil etilgan bo'lib, PP-R, PE, PE-RT, PB plastik quvurlar va armatura ishlab chiqarishga ixtisoslashgan kompaniya hisoblanadi. Xitoyning Shandong viloyati, Linyi shahrida joylashgan bo'lib, biz doimiy ravishda o'zimizni xalqaro savdo va ta'minot quvurlari dilerlariga bag'ishlaymiz, ular butun dunyodan moslashtirilgan xizmat bilan keladi. Zamonaviy zavod qurish uchun biz bir qator professional mexanik uskunalarga sarmoya kiritamiz. Kompaniyamiz professional va tajribali iste'dodlarni qo'llaydi va inson resurslarini boshqaruv, foydalanish va xizmat ko'rsatishning to'liq tizimiga qaratadi. Biz hamkorlarimizga professional va samarali bir-stop xizmatini taqdim etamiz.

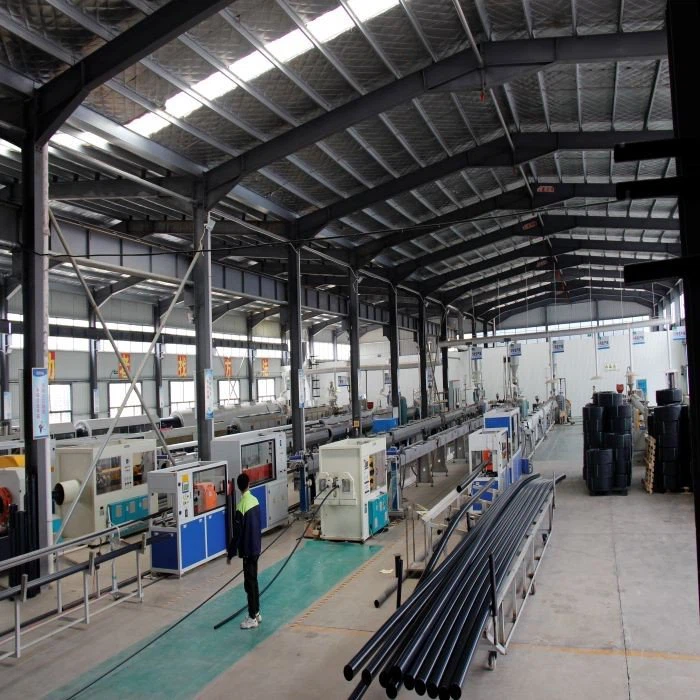

Kompaniya fotosurati:

HDPE pipe for potable water supply
